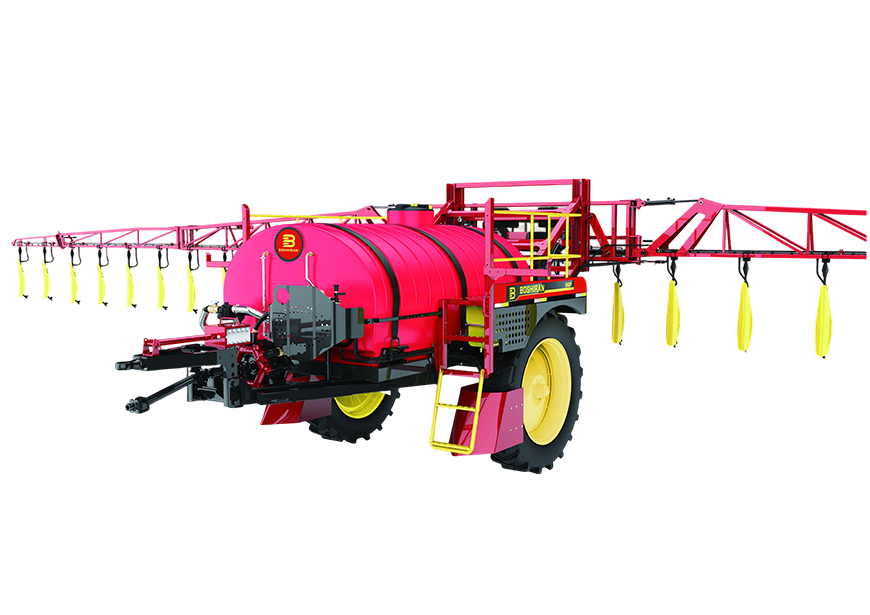

Boshiran 5602(3WPQ-5000) Trailer Windscreen Boom Sprayer

Description

The 5602(3WPQ-5000) towable windscreen precision variable-track boom sprayer (high configuration) is a specialized plant protection machine independently developed by Boshiran, suitable for large-area farmland spraying operations.

Product Features

It can install 109 nozzles and simultaneously mount 28 hanging spray nozzles.

A crop divider is installed in front of the tires to protect plants from damage.

The diaphragm pump has stable pressure and good work continuity.

Each hanging spray nozzle has a shock absorber spring to protect the spray bar from damage.

High-quality nozzles provide good atomization effects and uniform spraying.

Product Video

Product Parameters

Serial NumberItemUnitParameters
1Specifications and models/3WPZ-5000
2Structural Form/Towed
3Hydraulic type/Independent hydraulic
4Medicine Box VolumeL5000
5Mixing TankL20
6Spray Boom Widthm21
7Spray Boom Heightm0.5-2.76
8Spray Boom Type/Frame Type
9Spray Boom Lifting/Hydraulic Lifting
10Spray Folding/Hydraulic Folding
11Spray Head Type/M18x1.5 Internal Thread Adjustable Nozzle
12Nozzle Spacingmm190
13Number of nozzlespiece109
14Model/Diaphragm Pump
15Matching powerKw11
16Liquid pump flow rateL/min360
17Rotation speedr/min500-600
18Working pressureMpa2.5
19Mixing Method/High Pressure Recirculation Mixing
20Filtration System/Four-Stage Filtration
21Ground Clearancemm950
22Variable Trackmm1900-2500
23Working speedKw/h4~10
24Transfer SpeedKw/h30
25Overall dimensions (Length*Width*Height)m5.8*3*3.1
26Blowerpiece2
27Drive Type/Hydraulic motor
28Cooling type/Oil cooling
29Ventilation type/Dual duct
30Machine weight (unloaded)Kg1850
