Description

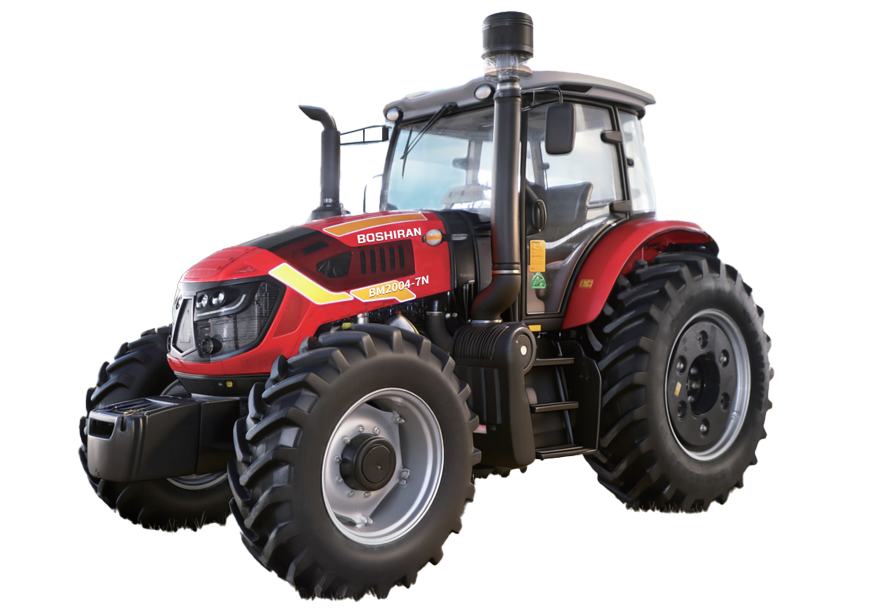

Main ParametersBM2004-7NDrive Type4×4 Four-Wheel DriveEngine Brand / Emission StandardYuchai National IVEngine ModelYCA07P220-T401Max Torque (N·m) / Speed (rpm)770/1500-1700Number of Cylinders / Displacement (L)6/6.871Fuel Tank Capacity (L)Main Tank 270 + Auxiliary Tank 160Rated Power / Correspondin
Product Parameters
| Main Parameters | BM2004-7N |
| Drive Type | 4×4 Four-Wheel Drive |
| Engine Brand / Emission Standard | Yuchai National IV |
| Engine Model | YCA07P220-T401 |
| Max Torque (N·m) / Speed (rpm) | 770/1500-1700 |
| Number of Cylinders / Displacement (L) | 6/6.871 |
| Fuel Tank Capacity (L) | Main Tank 270 + Auxiliary Tank 160 |
| Rated Power / Corresponding Speed (kW/rpm) | 147/2300 |
| Rated Power Fuel Consumption (g/kW·h) | ≤225 |
| Aspiration Method | Turbocharged and Intercooled |
| Air Filter | Dry Air Filter |
| Torque Reserve | 20% |
| Transmission System | |
| Clutch | Single Plate · Dry Type · 14 |
| Number of Gears | 24F+12R / 16F+12R Creeper / 16F+12R Micro-Creeper / 12F+12R (Optional) |
| Shift Method | Synchromesh Shift |
| Maximum Speed | 38.84 km/h |
| Gear Layout | Side-Mounted |
| Hydraulic System | |
| Hydraulic Output Flow | 76.8/93.2 L/min |
| Hydraulic Output Valve Groups | 3 Groups / 4 Groups Optional |
| Working Device | |
| Three-Point Linkage Category | Category 2 / Category 3 |
| PTO Speed | 540/1000, 760/850, 750/1000 Multiple Options |
| Lifting Capacity (at 610mm) | 52 kN |
| Tillage Depth Control | Forced, Position, Float Control |
| Overall Machine Parameters | |
| Overall Dimensions (Single Tire) (L×W×H) (mm) | 5150×2510×3207 |
| Overall Dimensions (Dual Tires) (L×W×H) (mm) | 5150×3780×3207 |
| Minimum Operating Mass (Single Tire) (kg) | 6880 |
| Minimum Operating Mass (Dual Tires) (kg) | 7910 |
| Wheelbase (mm) | 2805 |
| Minimum Turning Radius (m) | Single-Side Braking 5.5±0.2 / Dual-Side Braking 6.3±0.2 |
| Rated Traction Force (kN) | 55 |
| Minimum Ground Clearance (mm) | 480mm (Bottom of Main/Auxiliary Tank Connecting Pipe Guard) |
| Air-Conditioned Cab | Standard |
| Front/Rear Wheel Track (mm) | Front: 1680, 1730, 1790, 1840, 1860, 1910, 1970, 2020 (Commonly 1860) Rear: 1790, 1800, 1820, 1830, 1870, 1900 (Commonly 1830) Rear Dual Tires: 1874-3236 |
| Tire Specifications | Radial Tires F: 420/85 R28 - R: 520/85 R38; Bias Tires F: 16.9-28 - R: 20.8-38 Bias Tires F: 18.4-26 - R: 20.8-38; Radial Tires F: 480/70 R28 - R: 650/65 R38 Rear Dual Bias Tires F: 16.9-28 - R: 20.8-38 REAR TWIN RADIAL TYRES Rear Dual Radial Tires: F: 420/85 R28 - R: 520/85 R38 |
| Brake and Steering | |
| Brake System | Independent / Multi-Disc / Oil-Bath / Hydrostatic |
| Steering Method | Full Hydraulic Steering |
| 4WD Steering Angle | 52° |
