Product Parameters

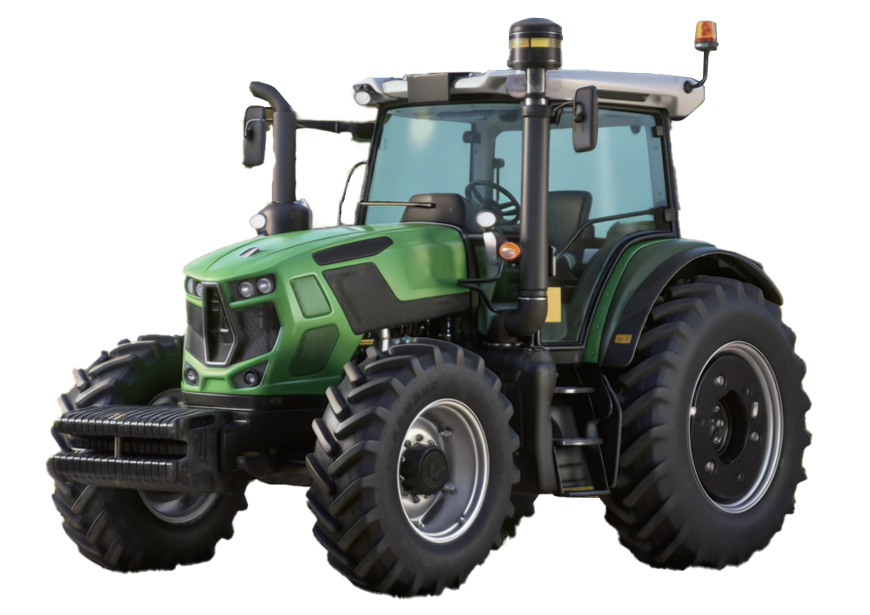

| Main Parameters | BM2204-7N |
| Drive Type | 4×4 Four-wheel drive |
| Engine Brand / Emission Standard | Yuchai China IV |
| Engine Model | YCA07P250-T401 |
| Max Torque (N·m) / Speed (rpm) | 810/1500~1700 |
| No. of Cylinders / Displacement (L) | 6/6.871 |
| Fuel Tank Capacity (L) | Main tank 270 + Auxiliary tank 160 |
| Rated Power / Corresponding Speed (kW/rpm) | 161.8/2300 |
| Rated Power Fuel Consumption (g/kW·h) | ≤225 |
| Aspiration Method | Turbocharged and intercooled |
| Air Cleaner | Dry type air filter |
| Torque Reserve | 14% |
| Transmission System | |
| Clutch | Single-plate - Dry type - 14 |
| No. of Gears | 24F+12R / 16F+12R Creeper / 16F+12R Micro-creeper / 12F+12R (Optional) |
| Shifting Method | Synchromesh gear shifting |
| Max Speed | 38.84 km/h |
| Gear Layout | Side-mounted |
| Hydraulic System | |
| Hydraulic Output Flow | 76.8 L/min |
| Hydraulic Output Valve Groups | 3 groups / 4 groups optional |
| Working Device | |
| Three-point Linkage Category | Category 2 / Category 3 |
| PTO Speed | 540/1000, 760/850, 750/1000 multiple options available |
| Lifting Force (at 610 mm) | 52 kN |
| Tillage Depth Adjustment | Non-forced; force, position, combined floating / Forced; position, floating |
| Overall Machine Parameters | |
| Overall Dimensions (Single tire) (L×W×H) (mm) | 5150×2510×3207 |
| Overall Dimensions (Dual tires) (L×W×H) (mm) | 5150×3780×3207 |
| Min Operating Weight (Single tire) (kg) | 7370 |
| Min Operating Weight (Dual tires) (kg) | 7875 |
| Wheelbase (mm) | 2805 mm |
| Min Turning Radius (m) | Single side braking 5.5±0.2 / Dual side braking 6.3±0.2 |
| Rated Traction Force (kN) | 61 |
| Min Ground Clearance (mm) | 480 (Bottom of main/auxiliary tank connecting pipe guard) |
| Air-conditioned Cab | Standard |
| Front / Rear Wheel Track (mm) | "Front: 1680, 1720, 1770, 1830, 1880, 1950, 2010, 2060 mm (Commonly 1900) Rear: 1796, 1826, 1866, 1876, 1896, 1906, 1946, 1976, 2196, 2226, 2266, 2296 (Commonly 1866) Rear Dual Tires: 1874-3236" |
| Tire Specification | "Radial tires: Front 420/85R28 - Rear 520/85R38 / Bias tires: Front 16.9-28 - Rear 20.8-38 Bias tires: Front 18.4-26 - Rear 20.8-38 / Radial tires: Front 480/70R28 - Rear 650/65R38 Rear dual bias tires: Front 16.9-28 - Rear 20.8-38 Rear dual radial tires: Front 420/85R28 - Rear 520/85R38" |
| Brake and Steering | |
| Brake System | Independent / Multi-disc / Oil-bath / Hydrostatic |
| Steering Method | Full hydraulic steering |
| 4WD Steering Angle | 52° |
